Parameter Table
| Electrical Characteristics |
Rate voltage(Vdc) | 51.2 |
| Rate capacty(AH) | 200 | |
| Energy storage(KWH) | 10.24 | |
| Cycle life | ≥6000 cydes to 85%DOD | |
| Months self discharge | ≤2% | |
| Effidency of charge | 100%at 0.2C | |
| Efficiency of discharge | 96-99%at1C | |
| Standard Charge |
Chargevoltage | 58.4 |
| Charge mode | 0.2Cto 58.4V,then 58.4Vcharge current to 0.02C(CC/CV) | |
| Charge curent(A) | 40 | |
| Max.Charge curent(A) | 200 | |
| Charge cut-off voltage(VDC) | 58.4 | |
| Standard Discharge |
Contunouscurrent(A) | 200 |
| Discharge cut-off voltage(VDC) | 44.8 | |
| Environmenta | Charge temperature | 0℃to 45℃(32F to 113F)@60±25%Relative Humidiy |
| Discharge temperature | 20℃to 60℃(4F to 140F)@60±25%Relative Humidity | |
| Storage temperature | 0℃to 40℃(32F to 104F)@60±25%Relative Humidity | |
| Mechanical | IP cass | IP43 |
| Material system | LFePO4 | |
| Case matenal | Meta | |
| Case Type | RackWallMount | |

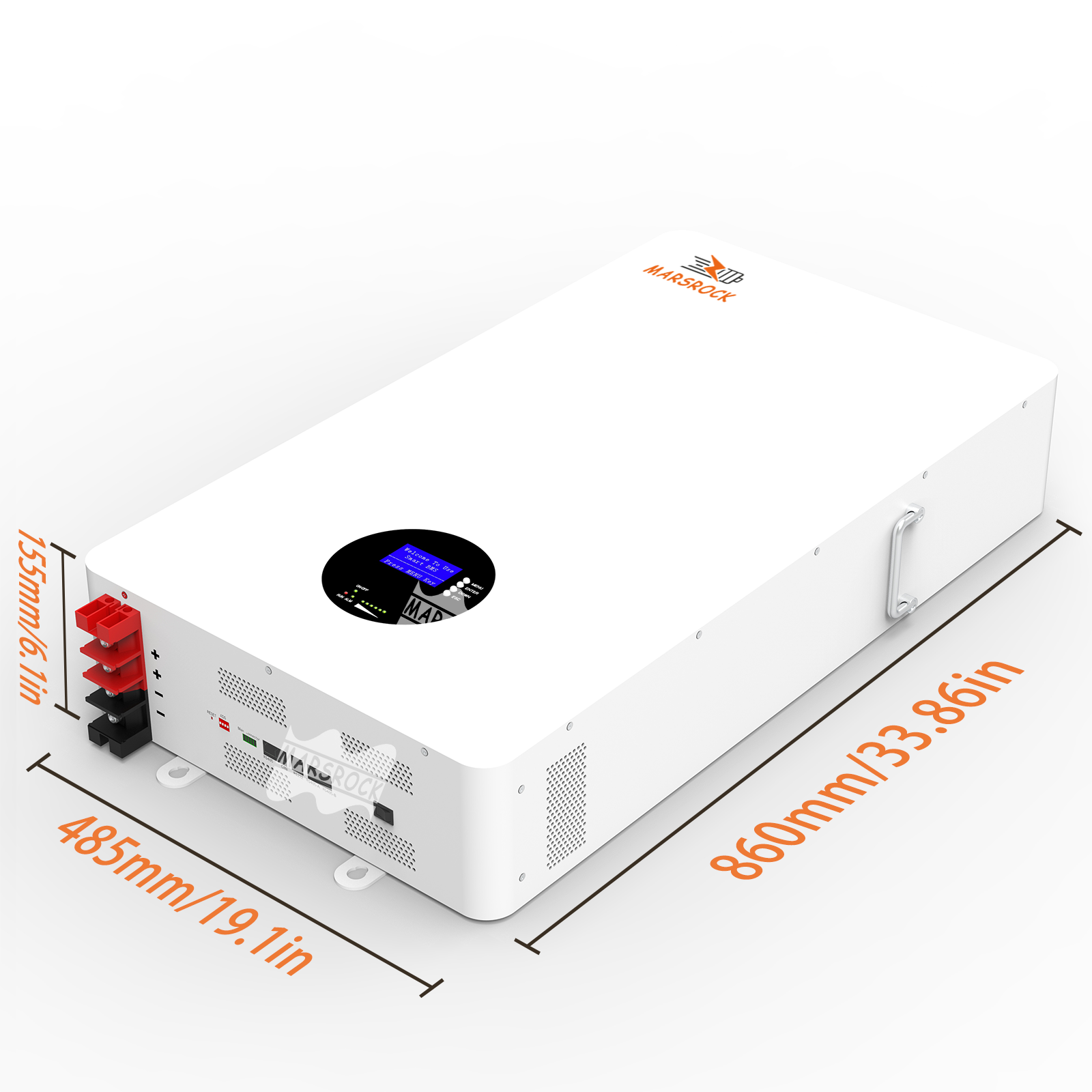

| Pack Dimensions L*W*H(mm) | 860*485*190 | |
| Package DimensionL*W*H(mm) | 950*575*250 | |
| Net Weight(kg) | 92.6 | |
| Gross Weight(kg) | 97.6 | |
| Termina | M8 | |
| Protocol(Optional) | CANBus/RS485/RS232 | |
| SOC (Optional) | LED/LCD | |
| The qualityassurance penod | 60 months |
