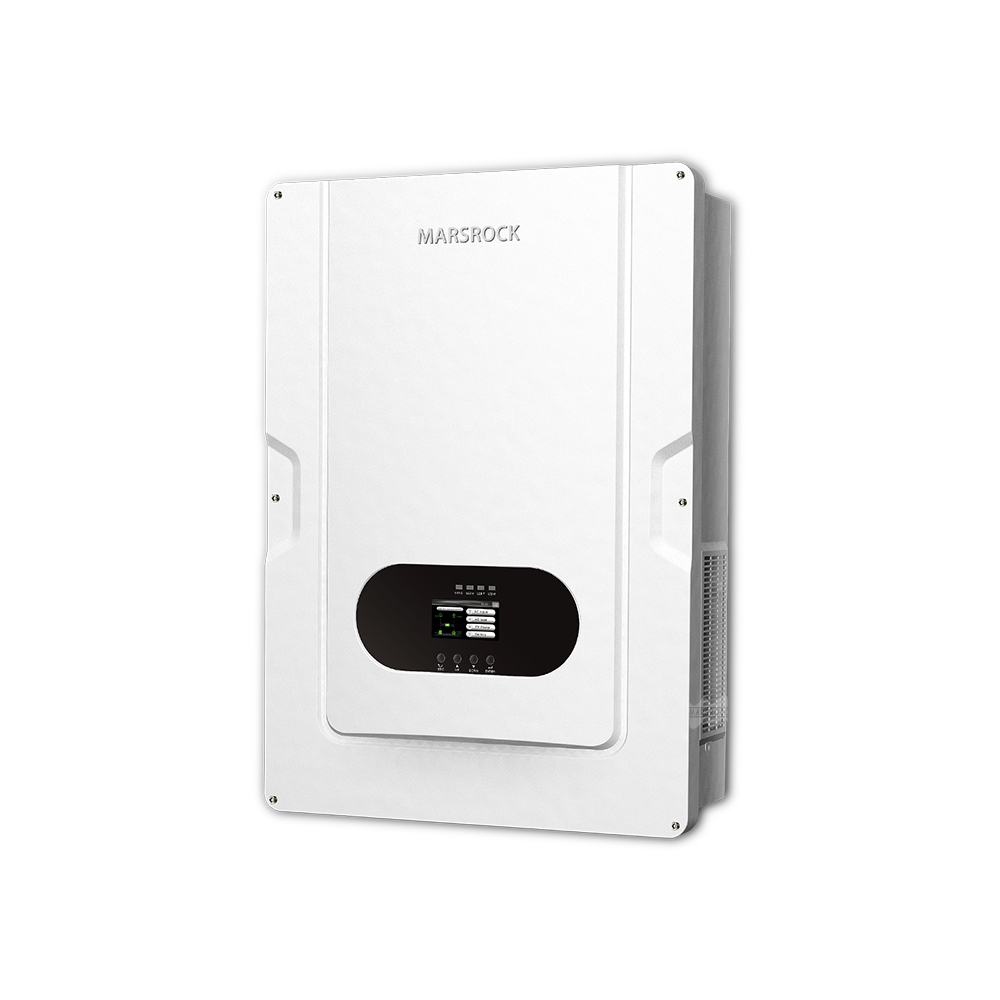

Name: 3kW 230V HH Series All In One Energy Storage System Suitable Home Use
Brand: Marsrock Energy Storage Website
SKU: HH-3kW
Availability: InStock
Rating: 5 (1 reviews)

No.HH-3kW

The HH series wall mounted All-in-one solar energy storage system has a large capacity, high efficiency, built-in BMS protection system, suitable for household use.

Rated Output Power(W)

3kW

Battery Capacity

2500Wh

Rated Output Voltage(V AC)

208/220/230/240 VAC(Settable) Default 230V

Size(mm)

387*163*540

Weight(kg)

23kg

GET A QUOTE

Add to Quote List View Quote List

Description

Special Reminder:
The indicated global retail price only for your reference. Contact with us to get more discount and its current inventory quantity of us which located in your country.

Products

Feature

3000W output power, with more than 98% conversion efficiency, to meet the needs of different families.
Wall-mounted installation, IP65 protection level, to meet the outdoor use conditions.
The whole machine is lightweight, easy to install, friendly display interface, beautiful modelling.
Higher power generation efficiency, saving the cost of power generation and improving the efficiency of power generation.
Higher stability, not only to meet the needs of the grid, but also to provide more stable and safe power for the grid.

Technical Parameter

	Battery Capacity	2500Wh
Utility Mode	Input Voltage	170~280V AC
	Frequency	40~70Hz,Default
	Overload/short Circuit Protection	The bypass circuit breaker(20A)
	Maximum Efficiency	99.50%
	Conversion Time(bypass and inverter)	<10ms
	Biggest Bypass Overload Current	20A
Inverter Mode	Output Voltage Waveform	Pure sine wave
	Rated Output Power(W)	3kW
	Power Factor	0.9PF
	Rated Output Voltage(V AC)	208/220/230/240 VAC(Settable) Default 230V
	Output Frequency Range(Hz)	50.0 / 60.0Hz(Settable)Default 50Hz
	Maximum Efficiency	> 93%
	Battery Voltage	25.6V
	Compatible Battery Type	Lead-acid/lithium electricity
Utility Charging	Maximum Charging Current(Can Be Set)	50A
PV/Batter	Type Of Controller(PV)	PWM
Charging	Largest PV Open Circuit Voltage	85V
	PV Operating Voltage Range	30~80V
	Largest PV Input Current	50A
	Solar Charging Currentrange (Can Be Set)	10~50A
Specifications	Size(mm)	387163540
	Weight(kg)	23kg
